에어리스 건

OPTION

  • All Parts in this line are OPTION

    Ex) G50P000, G50P000-X1, G50P000-Z2

  • STANDARD

  • OPTION:-X1

  • OPTION:-Z2

Airless Spray Gun serise

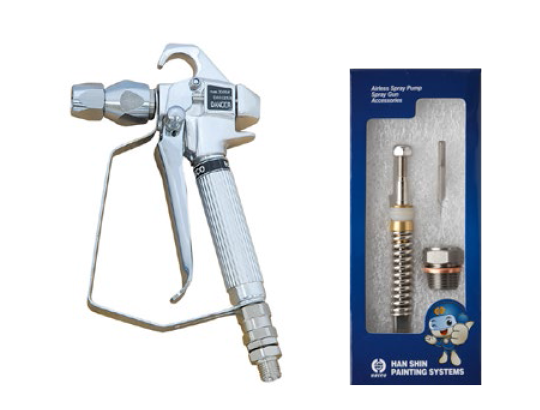

  • PRO-3000N GUN

  • PRO-5000 PLUS GUN

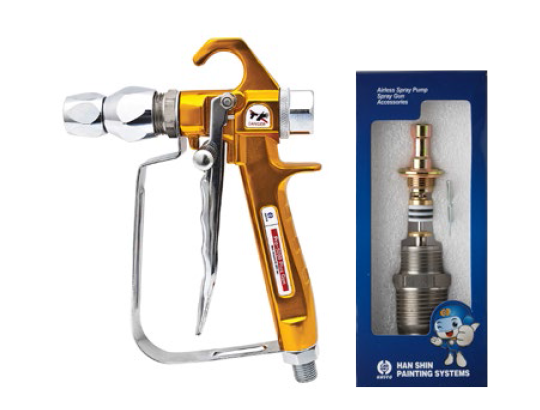

  • PRO-GOLDEN GUN

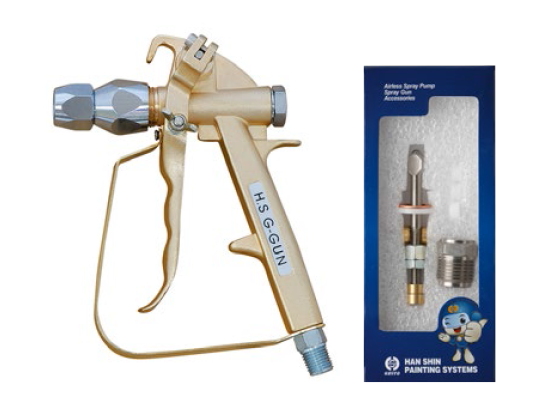

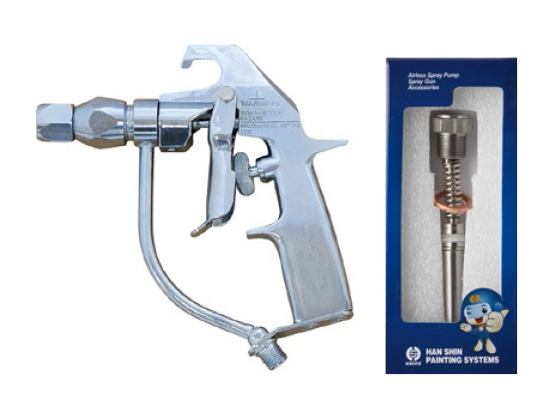

  • PRO-SILVER PLUS GUN

Product data

PRO-3000N GUN PRO-5000 PLUS GUN PRO-GOLDEN GUN PRO-SILVER PLUS GUN
CODE G30N000 G50P000 G50P000-A G71000 G72P000
MATERIAL AL S45C AL
MAX. PRESSURE(bar) 250 500 500 350
NET WEIGHT(gs) 680 525 480 810 650
THREAD(Outlet/Inlet) UNF7/8"x14IN
NPS1/4"x18IN		 UNF7/8"x14IN
NPS1/4"x18IN		 M18X1.5P
NPS1/4”X18IN		 UNF7/8"x14IN
NPS1/4"x18IN		 UNF7/8"x14IN
NPS1/4"x18IN
REPAIR KIT RG30N000 RG50000 RG50000-A RG71000 RG72P000

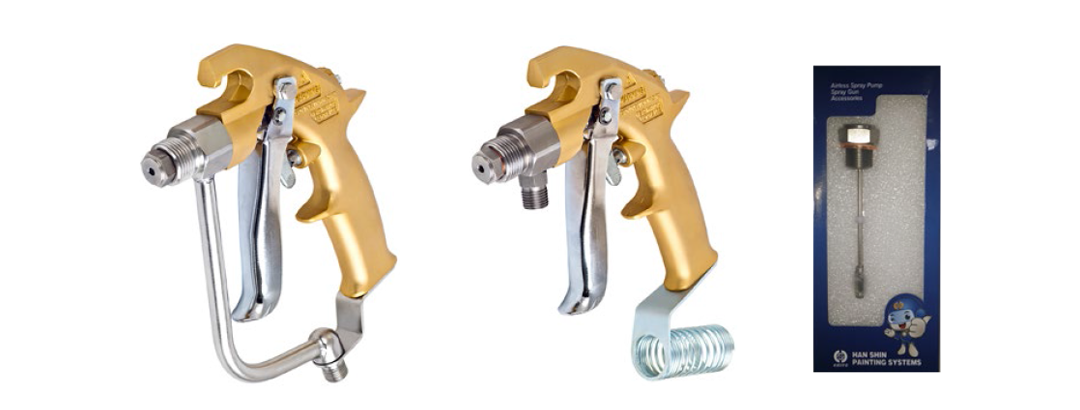

  • PRO-SH500 GUN(PIPE TYPE/SPRING TYPE)

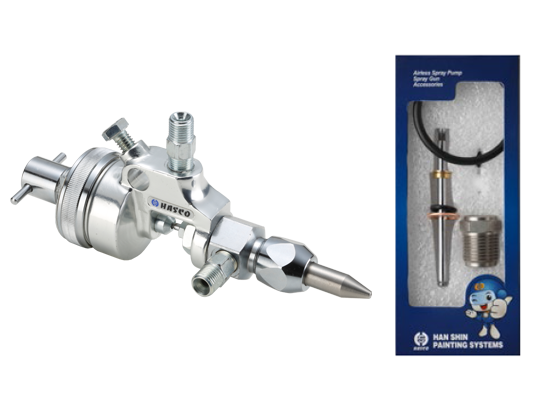

  • AUTO GUN

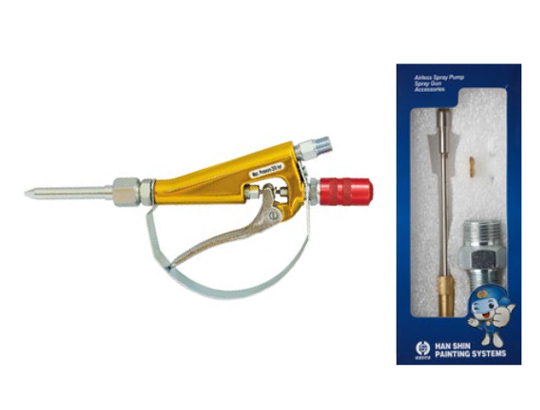

  • SEALANT GUN

Product data

PRO-SH500 GUN(PIPE TYPE) PRO-SH500 GUN(SPRING TYPE) AUTO GUN SEALANT GUN
CODE G72H000-P G72H000 G74000 G74S000 G75000
MATERIAL AL&Stainless Steel AL&Stainless Steel AL Stainless AL
MAX. PRESSURE(bar) 500 500 250 210
NET WEIGHT(gs) 650 610 960 600
THREAD(Outlet/Inlet) UNF7/8"x14IN
NPS1/4"x18IN		 UNF7/8"x14IN
NPS1/4"x18IN		 UNF7/8"x14IN
NPS1/4"x18IN		 UNF3/8"x18IN
NPS1/4"x18IN
FLUID PRESSURE RATIO RG72H000 RG72H000 RG74000 RG75000

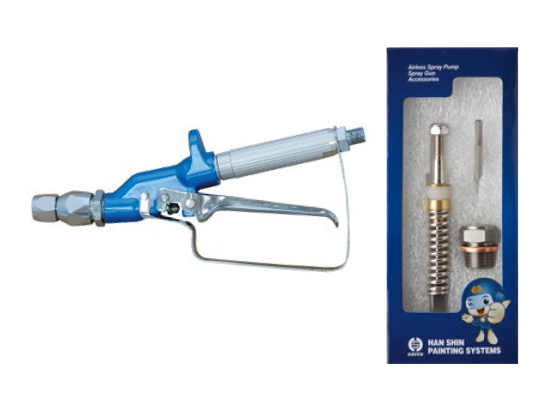

  • LINER GUN

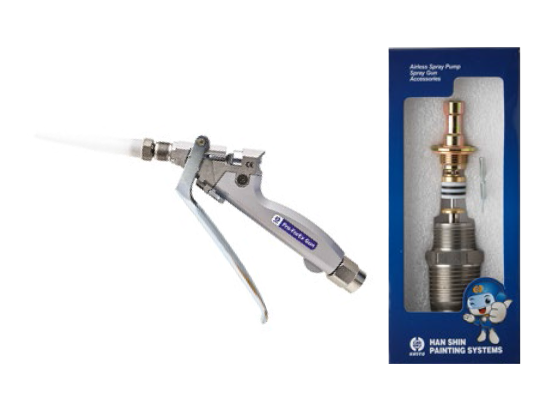

  • ForEx-GUN

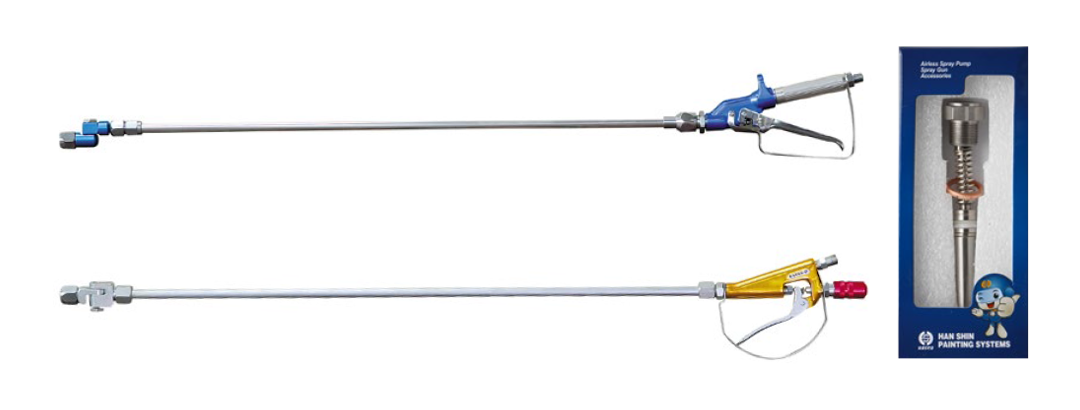

  • Liner Pole GUN/Pole GUN

Product data

LINER GUN ForEx-GUN POLE GUN SERIES G73090~300
CODE G76000 G61000 MAX. PRESSURE(bar) 250
MATERIAL AL Stainless NET WEIGHT
(AL/gs, AL+90=S45c)		 1300/1600/1820/2000/3300/4050
MAX. PRESSURE(bar) 250 450
NET WEIGHT(gs) 690 660 THREAD (Outlet/Inlet) UNC11/16"x16IN
NPS1/4"x18IN
THREAD(Outlet/Inlet) UNF7/8"x14IN
NPS1/4"x18IN		 NPT1/4"&UNF3/4"
NPT1/2"		 G73090/120/150/180/240/300 UNF3/8"x18IN
NPS1/4"x18IN
REPAIR KIT RG76000 RG61000 REPAIR KIT RG73000
