제품 제원

Combinative(Air Operated) Option

Product data

Optional Code AIR MOTOR Displacement Pump Characteristic Ratio Delivery Max. Pressure(bar)
Separated Stainless mL / Cycle L / min
B72A Maru (72100) Cycle 160/min Stroke 115mm 63S200-A O O 73:1 185.25 29.64 500
B72B 63D200 O 73:1 185.25 29.64 500
B72C 63200-A 73:1 185.25 29.64 500
B72D 45S200-A O O 56:1 240.36 38.46 392
B72E 45D200 O 56:1 240.36 38.46 392
B72F 45200-A 56:1 240.36 38.46 392
B68A Mir (68100) Cycle 50/min Stroke 120mm 68S200 O O 68:1 179.07 8.95 476
B68B 68200 O 68:1 179.07 8.95 476
B68C 63S200 O O 63:1 193.30 9.67 441
B68D 63D200-A O 63:1 193.30 9.67 441
B68E 63200 63:1 193.30 9.67 441
B68F 45S200 O O 45:1 250.81 12.54 315
B68G 45D200-A O 45:1 250.81 12.54 315
B68H 45200 45:1 250.81 12.54 315
B45A Nuri (45100) Cycle 50/min Stroke 120mm 68S200 O O 68:1 179.07 8.95 476
B45B 68200 O 68:1 179.07 8.95 476
B45C 63S200 O O 63:1 193.30 9.67 441
B45D 63D200-A O 63:1 193.30 9.67 441
B45E 63200 63:1 193.30 9.67 441
B45F 45S200 O O 45:1 250.81 12.54 315
B45G 45D200-A O 45:1 250.81 12.54 315
B45H 45200 45:1 250.81 12.54 315
B55A Mirine (55P100) Cycle 160/min Stroke 120mm 68S200 O O 33:1 179.07 10.74 231
B55B 68200 O 33:1 179.07 10.74 231
B55C 63S200 O O 30:1 193.30 11.60 210
B55D 63D200-A O 30:1 193.30 11.60 210
B55E 63200 30:1 193.30 11.60 210
B55F 45S200 O O 24:1 250.81 15.05 168
B55G 45D200-A O 24:1 250.81 15.05 168
B55H 45200 24:1 250.81 15.05 168
B28A Nare (28100-W) Cycle 60/min Stroke 100mm 28S200 O 28:1 60.67 3.64 196
B28B 28200 28:1 60.67 3.64 196
B28C 10200 O 10:1 190.79 11.45 70
B23A Hemi (23100) Cycle 60/min Stroke 80mm 28S200 O 12:1 48.53 2.91 84
B23B 28200 12:1 48.53 2.91 84
B23C 23200 23:1 28.75 1.73 161
B23D 10200 O 4:1 152.63 9.16 28

Table of Repair Kits

Product data

MODEL AIR MOTOR AIR MOTOR KITS DIS-PUMP DIS-PUMP TYPE DIS-PUMP KITS
A98400 MARU R72100 63S200-A STAINLESS STEEL R63S200
63D200 CARBON STEEL(EASY SERVICING) R63D200
63200-A CARBON STEEL R45S200
PRO-MARU 561 45S200-A STAINLESS STEEL R45S200
45D200 CARBON STEEL(EASY SERVICING) R45D200
45200-A CARBON STEEL R45200
PRO-MIR 681 MIR R68100 68S200STAINLESS STEEL R68S200
68200 CARBON STEEL(EASY SERVICING) R68200
PRO-MIR 631 63S200-A STAINLESS STEEL R63S200
63D200-A CARBON STEEL(EASY SERVICING) R63D200
63200 CARBON STEEL R63200
PRO-MIR 451 45S200-A STAINLESS STEEL R45S200
45D200-A CARBON STEEL(EASY SERVICING) R45D200
45200 CARBON STEEL R45200
PRO-NURI 681 NURI R45100 68S200 STAINLESS STEEL R68S200
68200 CARBON STEEL(EASY SERVICING) R68200
PRO-NURI 631 63S200-A STAINLESS STEEL R63S200
63D200-A CARBON STEEL(EASY SERVICING) R63D200
63200 CARBON STEEL R63200
PRO-NURI 451 45S200-A STAINLESS STEEL R45S200
45D200-A CARBON STEEL(EASY SERVICING) R45D200
45200 CARBON STEEL R45200
PRO-MIRINE 331 MIRINE R55P100 68S200 STAINLESS STEEL R68S200
68200 CARBON STEEL(EASY SERVICING) R68200
PRO-MIRINE 301 63S200-A STAINLESS STEEL R63S200
63D200-A CARBON STEEL(EASY SERVICING) R63D200
63200 CARBON STEEL R63200
PRO-MIRINE 241 45S200-A STAINLESS STEEL R45S200
45D200-A CARBON STEEL(EASY SERVICING) R45D200
45200 CARBON STEEL R45200
PRO-MIRINE 331 NARE R28100-W 28S200 STAINLESS STEEL R28S200
28200 CARBON STEEL R28200
PRO-NARE 101 10200 CARBON STEEL(EASY SERVICING) R10200
PRO-HEMI 171 HEMI R23100 28S200 STAINLESS STEEL R28S200
28200 CARBON STEEL R28200
PRO-HEMI 231 23200 CARBON STEEL R23200
PRO-HEMI 040 10200 CARBON STEEL(EASY SERVICING) R10200

Air Motors kit includes Air Direction Valves, O-rings, Gaskets, Packings and Backup-washer

Dis-Pump kit includes Glands, V-packing, O-rings, Washer, Gaskets, Balls, Retainer and Pin

(When ordering, we can meet your special V-packing type such as UHMWPE, PTFE, LEATHER)

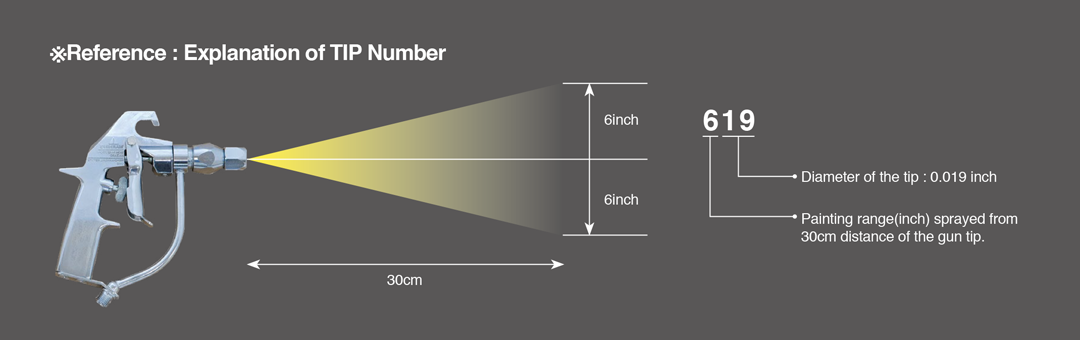

Table of the tip-Connected Number

Product data

TIP MODEL OF INSIDE DIAMETER CAPACITY OF SPOUTING OIL RANGE OF ANGLE
A B 1(50-100) 2(100-150) 3(150-200) 4(200-250) 5(250-300) 6(310-360) 7(360-410) 8(410-460) 9(460-510)
07 0.15 107 207 307 407
09 0.27 109 209 309 409 509 609
11 0.42 111 211 311 411 511 611 711
13 0.61 113 213 313 413 513 613 713 813
15 0.80 115 215 315 415 515 615 715 815
17 1.02 117 217 317 417 517 617 717 817 917
19 1.29 119 219 319 419 519 619 719 819 919
21 1.59 121 221 321 421 521 621 721 821 921
23 1.89 223 323 423 523 623 723 823 923
25 2.27 225 325 425 525 625 725 825 925
27 2.65 0.87 227 327 427 527 627 727 827 927
29 3.07 1.10 229 329 429 529 629 729 829 927
31 3.52 1.36 231 331 431 531 631 731 831 931
33 3.97 1.70 233 333 433 533 633 733 833 933
35 4.50 2.08 235 335 435 535 635 735 835 935
37 5.03 2.54 237 337 437 537 637 737 837 937
39 5.60 3.63 239 339 439 539 639 739 839 939
43 6.85 5.11 343 443 543 643 743 843
47 8.14 7.15 347 447 547 647 747 847
51 9.69 9.27 351 451 551 651 751
55 11.32 11.92 455 555 655 755
59 15.14 459 559 659 759
63 18.93 463 563 663 763
67 567 667
71 671

Tips out of bold line should be ordered after confirmation of out stock and delivery date

Range of angle is based on 30cm spray distance

Capacity of spouting oil is based on following dondition

"A" paint viscosity : 250 CPS, paint spraying pressure : 110kgf/㎠

"B" paint viscosity : 56,000 CPS, paint spraying pressure : 110kgf/㎠
